IBM Direct Link

To create a new IBM Direct Link Connect service, customers need to create a Direct Link Connect service via the IBM portal and select the location (e.g. Amsterdam), provider (Colt) and a bandwidth between 50Mbps and 5Gbps. Customers will also be required to select routing details.

Once the service has been created, IBM need to approve the request – this may take several hours.

All Direct Link services are handed over on a shared NNI between Colt and IBM.

Carol-Merel-500

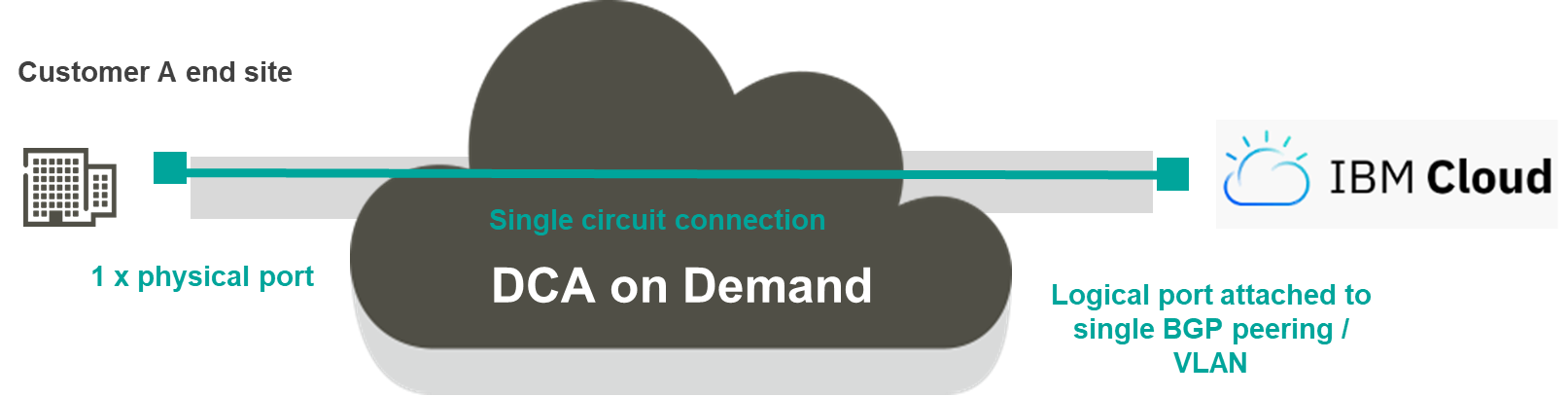

Connections to IBM Direct Link Connect ports

Connections to IBM Direct Link Connect ports are based on a 1:1 circuit connection to hosted port mapping. The cloud B end configuration is always based on single 802.1Q VLAN* – this is automatically configured when the default “Cloud VLAN” option is selected. * The Ethertype is 8100, although this is not visible to customers

The standard VLAN modes apply at the customer A end port, which are summarised in the below table:

Application
Open port Circuit occupies whole A end port Port based handover, all traffic on the customer port is mapped to the cloud port
Add VLAN Customer uses single tagged VLAN to map traffic VLAN added on egress, towards customer (in translation mode). VLAN can be S-VLAN (88a8) or C-VLAN (8100). Standard H&S config. VLAN contains three “inner” VLANs. Customer needs to map inner VLANs to “outer” tag

IBM Direct Link Connect configuration

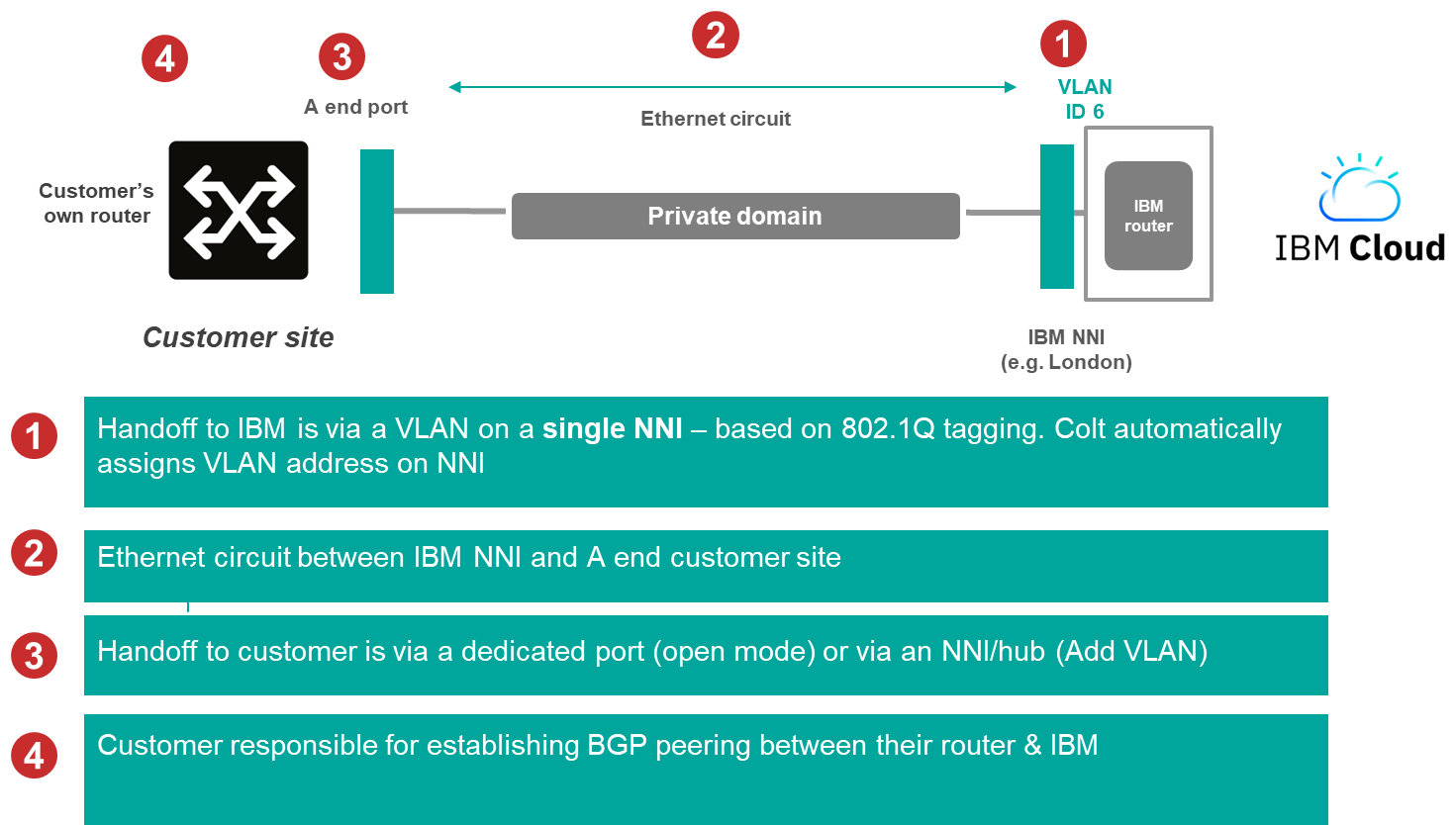

The below diagram summarises the configuration:

500 x 500 Etienne Lacour
  • 1

    Handoff to IBM is via a VLAN on a single NNI - based on 802.1Q tagging. Colt automatically assigns VLAN address on NNI

  • 2

    Ethernet circuit between IBM NNI and A end customer site

  • 3

    Handoff to customer is via a dedicated port (open mode) or via an NNI/hub (add VLAN).

  • 4

    Customer is responsible for establishing BGP peering between their router & IBM

End-to-end customer journey

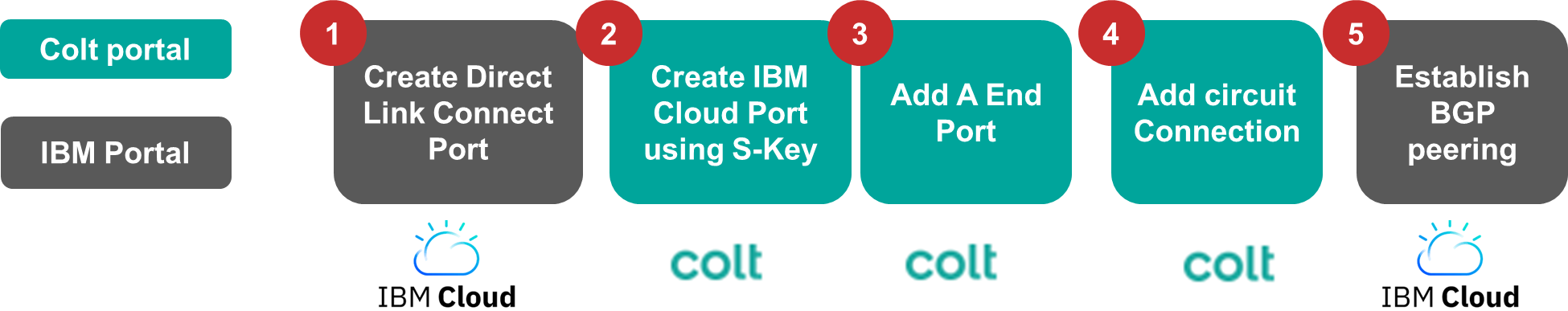

The customer journey to establish end to end connectivity to an IBM interconnect port is illustrated below:

colt-microsoft

IBM Direct Link Dedicated Ports

Connections to 10Gbps IBM Direct Link dedicated ports can be supported via a standard DCNet On Demand port – providing a DC cross connect is requested via the On Demand portal (the IBM LOA should be attached to the cross connect request).
